Andon光電傳感器插座——Renesas

發布時間：2024-03-21 14:23:02 瀏覽：1031

Andon Electronics是全球領先的精密插座制造廠商，其生產的插座廣泛應用于PCB板上，能夠與圖像傳感器、光電傳感器、氣體傳感器、電源轉換器、電池、晶體振蕩器、保險絲、繼電器等各類電子設備完美接插。

Renesas瑞薩電子是全球領先的汽車電子解決方案提供商之一，其產品線廣泛且多元化，涵蓋了傳感器、控制器、軟件和算法等多個領域。Renesas瑞薩傳感器具有高精度、高可靠性和快速響應的特點，可以廣泛應用于汽車的各種感知和監測功能中。

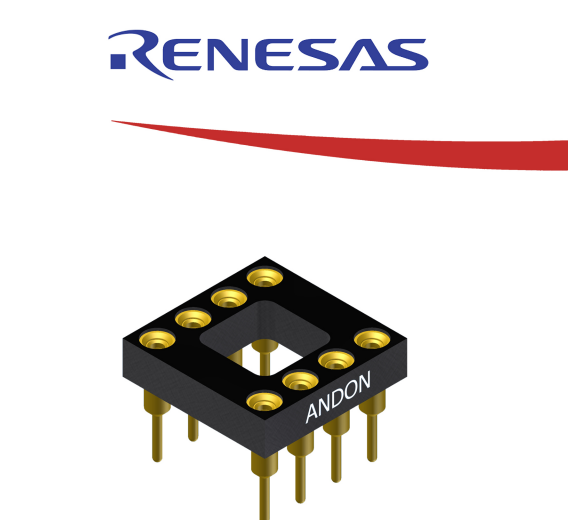

Andon光電傳感器插座——Renesas

Andon光電傳感器插座可適配于Renesas品牌，它可以精確地匹配Renesas光電傳感器的接口標準，有效減少信號損失，提升傳感器數據的準確性和可靠性，確保在復雜和多變的汽車環境中能夠穩定、高效地傳輸數據。

具體如下：

RENESAS Model Number	Andon Part Number Replace "XXX" with Terminal Type	Thru-Hole	Surface Mount	Pin ? [in]	Figure Number	Page Number
NR8300FP-CC	R080-0403-01N-XXX-R27-L14	274K	281K	.018	9	3
NR8360JP-BC	C10-314-14-01-XXX-R27-L14	01S	93S	.018	6	3
NR8800FS-CB	R080-0403-01N-XXX-R27-L14	274K	281K	.018	9	3
NV4V31MF	R056-0403-01N-XXX-R27-L14	400T4	414T4	.012	8	3
NV4V31SF	R056-0403-01N-XXX-R27-L14	400T4	414T4	.012	8	3
NV4V41SF	R056-0403-01N-XXX-R27-L14	400T4	414T4	.012	8	3
NX6240GP	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6308GH	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6309GH	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6314EH	R080-0404-01N-XXX-R27-L14	274K	281K	. 018	1	2
NX6342EP	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6350EP SERIES	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6350GP SERIES	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6351GP SERIES	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6352GP SERIES	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6353EP SERIES	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6410GH	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6411GH	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6414EH	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6511GH	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX6514EH	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX7335AN-AA	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX7338BF-AA	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX7339BB-AA	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX7437AG-AA	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX7537BF-AA	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX7539BB-AA	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX7563JB-BC	C10-314-14-01-XXX-R27-L14	01S	93S	.018	6	3
NX7637BF-AA	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX7639BB-AA	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX8315XC	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX8316XC	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX8601BF-AA	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX8602BF-AA	R080-0404-01N-XXX-R27-L14	274K	281K	.018	1	2
NX8663JB-BC	C10-314-14-01-XXX-R27-L14	01S	93S	.018	6	3
PS2502-1-DIP	C10-304-04-01-XXX-R27-L14	01S	93S	.018	2	2
PS2502-4-DIP	C10-316-16-01-XXX-R27-L14	01S	93S	.018	3	2
PS2503-1-DIP	C10-304-04-01-XXX-R27-L14	01S	93S	.018	2	2
PS2505-1-DIP	C10-304-04-01-XXX-R27-L14	01S	93S	.018	2	2
PS2505-4-DIP	C10-316-16-01-XXX-R27-L14	01S	93S	.018	3	2
PS2506-1-DIP	C10-304-04-01-XXX-R27-L14	01S	93S	.018	2	2
PS2513-1-DIP	C10-304-04-01-XXX-R27-L14	01S	93S	.018	2	2
PS2514-1-DIP	C10-304-04-01-XXX-R27-L14	01S	93S	.018	2	2
PS2535-1-DIP	C10-304-04-01-XXX-R27-L14	01S	93S	.018	2	2
PS2561-1-DIP	C10-304-04-01-XXX-R27-L14	01S	93S	.018	2	2
PS2561BL1-1-DIP	C10-404-04-01-XXX-R27-L14	01S	93S	.018	7	3
PS2561D-1-DIP	C10-304-04-01-XXX-R27-L14	01S	93S	.018	2	2
PS2561DL1-1-DIP	C10-404-04-01-XXX-R27-L14	01S	93S	.018	7	3
PS2561DL1-1-DIP	C10-404-04-01-XXX-R27-L14	01S	93S	.018	7	3
PS2562-1-DIP	C10-304-04-01-XXX-R27-L14	01S	93S	.018	2	2
PS2562L1-1-DIP	C10-404-04-01-XXX-R27-L14	01S	93S	.018	7	3
PS2565-1-DIP	C10-304-04-01-XXX-R27-L14	01S	93S	.018	2	2
PS2565L1-1-DIP	C10-404-04-01-XXX-R27-L14	01S	93S	.018	7	3
PS8501-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS8501L1-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS8501L2-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS8501L3-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS8502-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS8502L1-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS8502L2-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS8502L3-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS9505-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS9505L1-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS9505L2-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS9505L3-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS9506-DIP	C10-308-08-01-XXX-R27-L14	01S	93S	.018	4	2
PS9506L1-DIP	C10-308-08-01-XXX-R27-L14	01S	93S	.018	4	2
PS9506L2-DIP	C10-308-08-01-XXX-R27-L14	01S	93S	.018	4	2
PS9506L3-DIP	C10-308-08-01-XXX-R27-L14	01S	93S	.018	4	2
PS9531-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS9531L1-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS9531L2-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3
PS9531L3-DIP	C10-408-08-01-XXX-R27-L14	01S	93S	.018	5	3

材料:

絕緣:高溫uL 94v - 0

端子:黃銅，符合ASTM-B16標準

電鍍:符合RoHS標準

R17端子:亞光錫/觸頭;黃金

R27端子:金色/觸頭:金色

R32端子:鍍錫/觸頭:鍍錫

其他鍍層可用

更多Andon品牌產品信息可咨詢立維創展。
